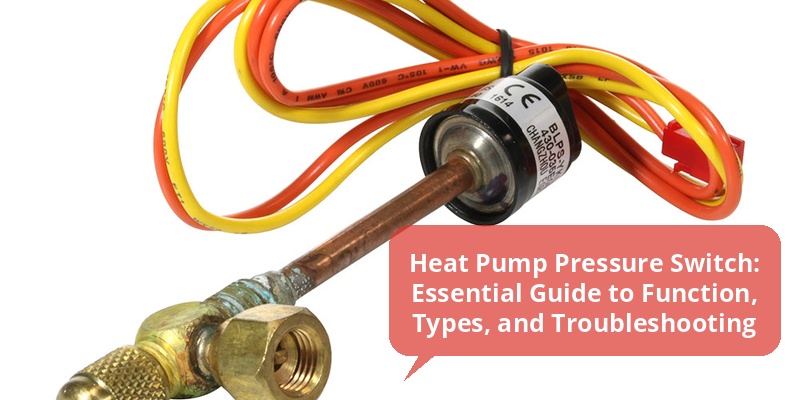

A heat pump pressure switch is a critical safety device that monitors pressure levels to protect the system from damage. Used in residential and commercial heat pumps, these switches ensure optimal performance by controlling compressor operation and preventing pressure-related failures. Understanding how heat pump pressure switches work, their types, and troubleshooting can help maintain efficiency and extend equipment life.
| Aspect | Details |
|---|---|
| Function | Monitors system pressure to activate or deactivate components |
| Common Types | High-pressure switch, low-pressure switch, differential pressure switch |
| Installation Locations | Between compressor and condenser, suction line, discharge line |
| Key Benefits | Protects system, enhances efficiency, prevents compressor damage |
| Troubleshooting Tips | Check wiring, test switch with multimeter, inspect pressure readings |
What Is a Heat Pump Pressure Switch and How Does It Work?
A heat pump pressure switch is an electrical safety device designed to monitor the refrigerant pressure in a heat pump system. It activates or deactivates the compressor or other components when pressure reaches preset limits, protecting the unit from dangerous high or low pressure conditions. By opening or closing its electrical contacts, the switch helps prevent compressor failure, refrigerant leaks, or system inefficiency caused by abnormal pressure.
The device typically uses a diaphragm or bellows mechanism that responds to pressure changes. When pressure exceeds or drops below the calibrated threshold, the mechanical movement triggers the switch. This control mechanism is essential for maintaining safe operation and optimizing performance.
Types of Heat Pump Pressure Switches
Heat pump pressure switches come in several types based on pressure sensing and operational roles:
- High-Pressure Switch: Detects excessive refrigerant pressure, preventing compressor damage by shutting it off when pressure exceeds safe levels.
- Low-Pressure Switch: Monitors low refrigerant pressure levels, which could indicate leaks or insufficient refrigerant, and stops the compressor to avoid damage.
- Differential Pressure Switch: Measures pressure difference between two points, often used to detect blockages or improper refrigerant flow within the system.
Choosing the right pressure switch depends on system specifications and manufacturer recommendations, ensuring compatibility and accurate pressure monitoring.
Common Locations for Installing Heat Pump Pressure Switches
Pressure switches are strategically placed to accurately monitor key areas of the heat pump’s refrigerant circuit:
- Suction Line: Low-pressure switches are often installed here to detect low refrigerant pressure before the compressor.
- Discharge Line: High-pressure switches monitor the higher pressure side after the compressor and condenser.
- Between Compressor and Condenser: Some systems use switches in this area to measure pressure and protect the compressor from extreme conditions.
Proper placement ensures timely response to pressure anomalies and maintains system integrity.
The Role of Heat Pump Pressure Switches in System Safety and Efficiency
Pressure switches are vital safety components that prevent serious damage by shutting down the compressor during unsafe operating pressures. High-pressure conditions might result from blocked condensers, dirty coils, or overcharging, while low-pressure could signal leaks or insufficient refrigerant. By monitoring these conditions, pressure switches help avoid costly repairs.
Additionally, pressure switches contribute to system efficiency by ensuring the compressor operates within the ideal pressure range. This reduces energy consumption and improves heat transfer performance, ultimately extending the service life of the heat pump.
Symptoms Indicating a Faulty Heat Pump Pressure Switch
Malfunctioning pressure switches can cause operational issues and appear through symptoms such as:
- Heat pump fails to start or frequently cycles on and off
- Compressor lockout or shutdown during operation
- Incorrect pressure readings or alarms on control panels
- Unusual noises emanating from the compressor
- Inconsistent heating or cooling performance
If these symptoms occur, inspecting and testing the pressure switch can often identify root causes.
Troubleshooting Heat Pump Pressure Switch Problems
Effective troubleshooting requires a systematic approach:
Visual Inspection
- Check for physical damage, corrosion, or leaks near the switch
- Ensure wiring terminals are secure and free of corrosion
- Look for refrigerant leaks that could affect pressure readings
Testing Electrical Function
Use a multimeter to check the switch’s continuity. This confirms whether the switch opens or closes contacts correctly at specified pressure values. Testing often involves:
- Disconnecting power and switching wires to isolate the device
- Simulating pressure changes if possible, using a pressure test apparatus
- Verifying the switch opens the circuit at high pressure or closes it at low pressure as expected
Check Pressure Measurements
Compare actual system pressures using manifold gauges or pressure sensors to the switch’s rated pressure settings to verify calibration and operation.
Heat Pump Pressure Switch Replacement and Maintenance Tips
Pressure switches require proper maintenance for longevity and accuracy:
- Schedule regular system inspections to catch early wear or damage
- Keep electrical contacts clean and free of corrosion
- Follow manufacturer guidelines for recalibration or replacement intervals
- Use genuine replacement parts to ensure correct pressure ratings and fit
Replacing a faulty switch involves confirming compatibility, safely disconnecting electrical power, removing the old switch, installing the new one, and testing the system for proper function.
How to Select the Right Heat Pump Pressure Switch for Your System
To ensure optimal operation, select a pressure switch based on:
| Criteria | Description |
|---|---|
| Pressure Range | Ensure the switch activates within the design pressure limits of the system |
| Type | Choose between high-pressure, low-pressure, or differential switches as required |
| Electrical Specifications | Match voltage and contact rating to system controls |
| Environmental Resistance | Consider durability against temperature, vibration, and moisture |
| Manufacturer Compliance | Use components recommended by the heat pump manufacturer |
Proper selection avoids false trips, enhances safety, and optimizes heat pump longevity.
