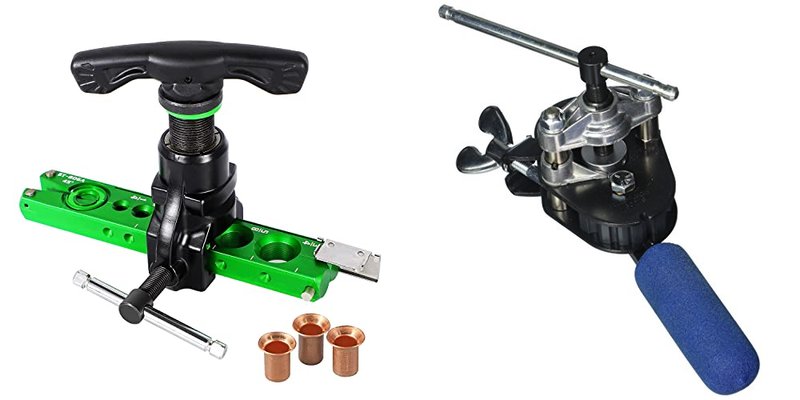

Installing or repairing a mini split system requires precise flaring of copper lines to ensure leak-free connections. A quality flaring tool creates the perfect 45-degree flare needed for refrigerant lines, preventing costly leaks and system failures. Whether you’re a professional HVAC technician or DIY enthusiast, selecting the right flaring tool can make the difference between a successful installation and frustrating repairs.
Modern mini split flaring tools feature eccentric cone designs, clutch mechanisms, and multiple die sizes to handle various copper tube diameters. The best tools combine precision engineering with user-friendly features like automatic height gauges and clutch systems that prevent over-flaring.
| Product | Size Range | Type | Key Feature |
|---|---|---|---|
| Bonvoisin Flaring Tool | 1/4″ – 3/4″ | Eccentric | Clutch & Limit Piece |
| Yellow Jacket 60278 | 1/8″ – 3/4″ | Traditional | Self-Centering Yoke |
| LIBRATON Kit | 1/4″ – 3/4″ | Eccentric | Complete Kit |
| MERWOF Kit | 1/4″ – 3/4″ | Eccentric | 5-Piece Set |
| Hilmor Orbital | 3/16″ – 3/4″ | Orbital | Professional Grade |
Bonvoisin Eccentric Flaring Tool With Clutch
The Bonvoisin flaring tool stands out with its eccentric cone design that creates a rolling action for uniform metal flow. This mechanism ensures consistent flare walls without excessive wear on the copper tubing, making it ideal for mini split installations. The tool handles tube sizes from 1/4″ to 3/4″, covering all standard mini split line sizes.
The integrated clutch mechanism automatically disengages when flaring is complete, preventing over-flaring that could damage the copper tube. Combined with the limit piece that precisely controls tube extension, this tool eliminates guesswork and reduces the risk of imperfect flares that could lead to refrigerant leaks.
Weighing less than 1kg, the aluminum alloy construction makes this tool comfortable for extended use. The lightweight design doesn’t compromise durability, as the hardened steel flaring cone maintains its precision through thousands of flares. However, this tool only creates single flares, so it’s not suitable for applications requiring double flares.
Yellow Jacket Professional Grade Flaring Tool
Yellow Jacket has built a reputation for quality HVAC tools, and their 60278 flaring tool continues this tradition. The tool features a comprehensive size range from 1/8″ to 3/4″, making it versatile for various mini split configurations and other HVAC applications. The self-centering yoke ensures precise 45-degree flares while gripping tubes securely without marring or constricting.
The automatic tube height gauge simplifies the flaring process by automatically positioning the tube at the correct height for optimal flare formation. This feature is particularly valuable for technicians working on multiple systems throughout the day, as it maintains consistency across all connections.
Built for professional use, this tool handles copper, brass, and aluminum tubing with equal effectiveness. The robust construction withstands daily use in demanding environments, making it a worthwhile investment for HVAC professionals. The large feed screw handle provides smooth operation with minimal effort, reducing technician fatigue during extended work sessions.
LIBRATON Complete Flaring Tool Kit
The LIBRATON flaring tool kit provides exceptional value by including both imperial and metric flaring clamps. This comprehensive approach makes it perfect for working with various mini split brands that may use different measurement systems. The kit handles sizes from 1/4″ to 3/4″ in imperial and 6mm to 19mm in metric measurements.
The 45-degree eccentric cone design produces smooth, leak-free flares suitable for refrigerant lines. The clutch mechanism prevents over-flaring, while the included pipe cutter and deburring tool create a complete solution for copper line preparation. This eliminates the need to purchase additional tools separately.
Beyond basic flaring, this kit addresses the entire process of preparing copper lines for mini split connections. The pipe cutter ensures clean, square cuts, while the deburring tool removes sharp edges that could damage seals or create leak points. The wide application range includes HVAC systems, air conditioners, and refrigeration equipment, making it versatile for various projects.
MERWOF 5-Piece HVAC Flaring Kit
The MERWOF 5-piece kit represents excellent value for mini split technicians seeking a complete solution. The kit includes the eccentric flaring tool, both metric and imperial clamps, a pipe cutter rated for 5-32mm tubes, and a deburring tool. All components arrive in a organized storage case that keeps tools protected and easily accessible.
The eccentric cone design creates high-quality single flares without leakage, essential for maintaining system integrity in mini split installations. The tool accommodates a wide range of tube sizes including all standard mini split line sizes. The clutch mechanism prevents over-flaring, while the dual clamp system ensures compatibility with various tubing standards.
Quality control measures include factory testing of each kit, evidenced by the included test flare sample. This demonstrates the manufacturer’s commitment to delivering working tools rather than untested products. The comprehensive nature of this kit makes it particularly suitable for technicians who want all necessary tools in one purchase, eliminating the need for separate acquisitions.
Hilmor Orbital Professional Flaring Tool
The Hilmor orbital flaring tool represents the premium end of flaring technology, designed specifically for professional HVAC and refrigeration work. Its orbital action creates exceptionally smooth 45-degree flares that form perfect seals with standard fittings. The tool handles sizes from 3/16″ to 3/4″, covering all mini split line requirements plus smaller refrigeration applications.
Built for durability and precision, this tool weighs 3.8 lbs and measures 8.5″ x 4.6″ x 5.3″, providing the stability needed for consistent results. The robust construction handles daily professional use while maintaining accuracy over thousands of flares. The orbital mechanism reduces the force required for flaring, making it easier on technician hands and wrists.
Professional HVAC technicians particularly appreciate the consistent results this tool delivers. The orbital action eliminates many variables that can affect flare quality, resulting in more reliable connections and fewer callbacks due to leak issues. While the initial investment is higher than basic flaring tools, the long-term reliability and professional results justify the cost for serious HVAC work.
Buying Guide For Mini Split Flaring Tools
Selecting the right flaring tool for mini split work requires considering several key factors that affect both performance and long-term value. The most critical consideration is size compatibility, as mini splits typically use 1/4″, 3/8″, 1/2″, and 5/8″ copper lines. Ensure your chosen tool covers these standard sizes.
Flare type is another crucial factor. Mini split installations require single 45-degree flares, so avoid tools designed exclusively for double flares. Look for eccentric cone designs that create smooth, consistent flares without excessive metal deformation. Traditional cone designs work but may require more skill to achieve perfect results consistently.
Consider whether you need a basic flaring tool or a complete kit. Kits often include pipe cutters, deburring tools, and storage cases that provide better overall value. However, if you already own quality cutting and deburring tools, a standalone flaring tool might be more economical.
Build quality directly impacts tool longevity and flare consistency. Look for hardened steel cones, robust clamp mechanisms, and smooth-operating handles. Lightweight aluminum construction reduces fatigue but shouldn’t compromise structural integrity. Professional-grade tools cost more initially but typically last longer and produce more consistent results.
Advanced features like clutch mechanisms and automatic height gauges improve consistency and reduce the risk of over-flaring. These features are particularly valuable for technicians performing multiple installations or for less experienced users who benefit from built-in safety measures.
Consider your work volume when choosing between basic and professional tools. Occasional DIY users can achieve good results with entry-level tools, while professional technicians benefit from investing in higher-quality options that maintain accuracy through heavy use. The cost difference often pays for itself through improved efficiency and reduced callback rates.
